OMRPTFZ08E

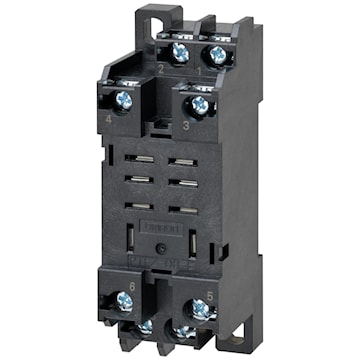

OMRON CANADA INC. PTFZ08E Standard 8 pin socket
Description
Socket, DIN rail/surface mounting, 8-pin, screw terminals
Specifications
| Brand Name | Omron | Item Name | Relay Socket |
| Type | Standard | Voltage Rating | 250 VAC |
| Amperage Rating | 10/5/15 A | Number of Pins | 8 |
| Mounting Type | DIN Rail | Terminal Type | Screw |
| Dimensions | 33 mm L x 28.5 mm W x 78.5 mm H | For Use With | G3H, LY1 and LY2 Series Relay |
| Standards | CE Certified, CSA LR31928, TÜV Certified, UL E87929 | UPC | 612647441967 |
