HUBHBLDS30AC

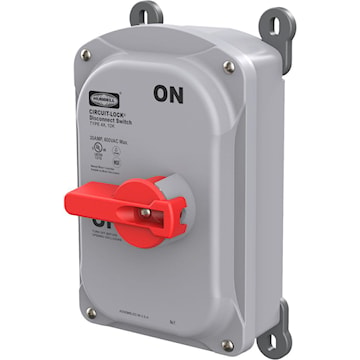

HUBBELL CANADA ULC HBLDS30AC NM SLOPED DISC, 30A UNFUSED, 4X, HBLAC1
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Constructed from corrosion and impact resistant UV stabilized non-metallic material
Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
Product rating are permanently laser-marked and will not wash off
Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
Factory installed HBLAC1 auxiliary contact is "Break After Main Break", 1 set of N/O contacts, 1 set of N/C contacts
Specifications
| Brand Name | Hubbell Wiring Device-Kellems | Wire Size | 14 AWG |
| Color | Gray | UPC | 783585763033 |
